DIGESTATE TREATMENT
The Anaerobic Digestion (AD) process, used to create biogas from organic waste, produces a byproduct known as anaerobic sludge digestate. This digestate, a mixture of liquid and solids, is a rich bio-fertilizer, but its large volume and inconsistent composition can pose challenges for sustainable management. Ion-Asia Group specializes in solid-liquid separation technologies that address these issues, helping to improve the management of this digestate and, in turn, contribute to a healthier environment.
The Role of Solid-Liquid Separation
Solid-liquid separation is a crucial first step in processing anaerobic digestate. It divides the digestate into two distinct streams: a nutrient-rich solid fraction and a low-solids liquid fraction. This separation is key to unlocking the full potential of the digestate and making its application more manageable.
Various techniques are used for this separation, with the most common being screw presses and centrifuges. These mechanical methods are designed to dewater the digestate, effectively reducing its volume and concentrating the valuable nutrients into a solid, stackable material.
Environmental Benefits of Ion-Asia's Technology
By efficiently separating the digestate, Ion-Asia Group's technologies offer significant environmental advantages. The process transforms a waste byproduct into valuable resources, promoting a circular economy.
Nutrient Recovery: The solid fraction of the digestate is an excellent source of organic matter and phosphorus. When applied to agricultural land, it acts as a high-quality bio-fertilizer, reducing the need for synthetic chemical fertilizers. This not only lowers costs for farmers but also helps prevent nutrient runoff into waterways, which can cause harmful algal blooms and disrupt aquatic ecosystems.
Reduced Volume & Transport Costs: Separating the digestate significantly reduces its overall volume. The concentrated solid fraction is much easier and more cost-effective to transport and store than the bulkier, wetter digestate. This reduces the carbon footprint associated with transporting waste.
Water & Resource Conservation: The separated liquid fraction, which is rich in nitrogen, can be used as a liquid fertilizer for irrigation. Advanced treatments, like membrane filtration, can further purify this liquid, allowing it to be reused within the anaerobic digestion plant or for other industrial purposes. This promotes water conservation and reduces the demand for freshwater.
Greenhouse Gas Reduction: Research suggests that separating digestate can lead to a reduction in greenhouse gas emissions, particularly methane (CH₄), which is a potent greenhouse gas. By processing and managing the digestate more effectively, the technology helps mitigate climate change.

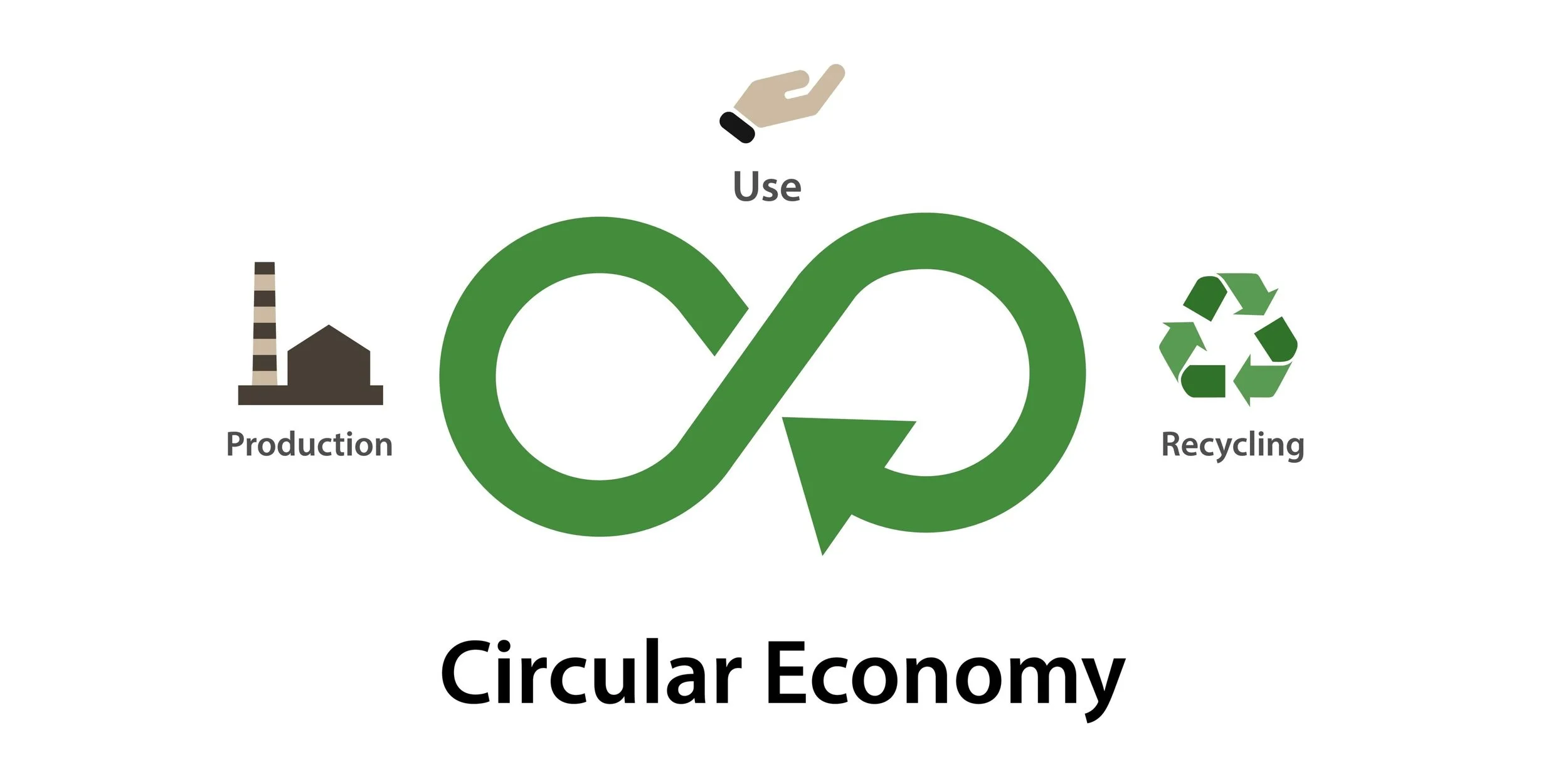

Ion-Asia's Contribution to a Circular Economy
Ion-Asia Group's work is a prime example of how technology can create a circular economy model.
Instead of viewing anaerobic digestate as a waste product to be disposed of, their solid-liquid separation solutions enable a system where resources are recovered and reused. This approach not only improves environmental sustainability but also creates new economic opportunities in the form of bio-fertilizers and reclaimed water, ultimately contributing to a more sustainable and resilient future.
Ion-Asia Group uses thse technologies— hydroclone separators, centrifugal separators and screw press filters—to efficiently separate anaerobic digestate into solid and liquid fractions.
Centrifugal Separators (Decanter Centrifuges)
Centrifugal separators, also known as decanter centrifuges, work on the principle of density separation. The digestate is fed into a rapidly rotating cylindrical bowl. The high centrifugal force pushes the denser solid particles to the outer wall of the bowl. An internal screw conveyor, rotating at a slightly different speed, then pushes these accumulated solids toward a discharge port. The lighter liquid fraction, or centrate, overflows at the opposite end. This method is highly effective at separating even very fine particles, resulting in a solid cake with a high dry matter content and a very clean liquid.
Screw Press Filters
Screw press filters operate on the principle of mechanical pressure and filtration.1 The anaerobic digestate is fed into a cylindrical screen, where a slowly rotating screw conveyor continuously compresses it.2 As the digestate is pushed along the screw, the pressure increases, forcing the liquid to filter through the fine screen mesh.3 The solids are retained and compacted into a "cake" at the end of the press, while the liquid, or filtrate, is collected.4 This technology is known for its simplicity, low energy consumption, and quiet operation.
Each technology has its advantages: centrifuges are generally more efficient at removing a higher percentage of solids and phosphorus, while screw presses are simpler, more energy-efficient, and more suitable for less-demanding applications or for processing fibrous materials.
Ion-Asia's hydrocyclone separators can be an excellent pre-treatment step before using centrifuges or screw presses to handle anaerobic digestate. While centrifuges and screw presses are highly effective at dewatering, they can be damaged or become less efficient by the presence of large, abrasive solids. By using a hydrocyclone first, you can remove these problematic materials, leading to several key benefits.
ION-ASIA’s Hydroclone Separators
How It Improves Efficiency
Using a hydrocyclone as a pre-treatment step significantly improves the performance of downstream equipment.
Removes Abrasive Particles: Anaerobic digestate often contains small, dense, and abrasive particles like grit, sand, and fine stones. These particles can cause accelerated wear and tear on the moving parts of centrifuges and screw presses, leading to costly maintenance and downtime. A hydrocyclone efficiently removes these materials, protecting the more sensitive and expensive equipment.
Reduces Load on Equipment: By separating out a significant portion of the coarse solids, the hydrocyclone reduces the overall solids load that the centrifuge or screw press has to process. This allows the primary dewatering equipment to operate more efficiently, often at a higher throughput rate.
Improves Dewatering Performance: The hydrocyclone's action removes larger, non-uniform particles that can interfere with the dewatering process in screw presses and centrifuges. This results in a more consistent and uniform feed material, allowing the downstream equipment to achieve a drier solid cake and a cleaner liquid fraction.
Synergy in Action
“The combination of a hydrocyclone with a centrifuge or screw press creates a powerful, multi-stage separation system. The hydrocyclone acts as a "scalper," removing the most challenging solids first. The centrifuge or screw press then handles the bulk of the dewatering, focusing on separating the remaining, finer organic solids and liquid. This integrated approach not only improves the lifespan and efficiency of the equipment but also produces a more refined solid product, which is better suited for use as a fertilizer or other applications”.
